Wattage: 2ft/8W, 3ft/12W, 4ft/10.5W&14.5W
Efficacy: 130-150lpw
Lamp Body: Glass
End cap: G13
Lens: Frosted
Input Voltage: 120-277Vac,50/60hz
Power Factor: >0.9
Available CCTs: B3000K/3500K/4000K/4100K/4500K/5000K/5700K/6500K
CRI: Ra83
Dimming: 0-10V dimming, dimming to 10%
Lifetime: 50,000 Hours
Warranty: 5 Years
Environmental Requirements: Operation temp:-20°- 45℃
Storage temp:-20 - 85℃
Relative Humidity:45% - 85%
Non-corrosive environments

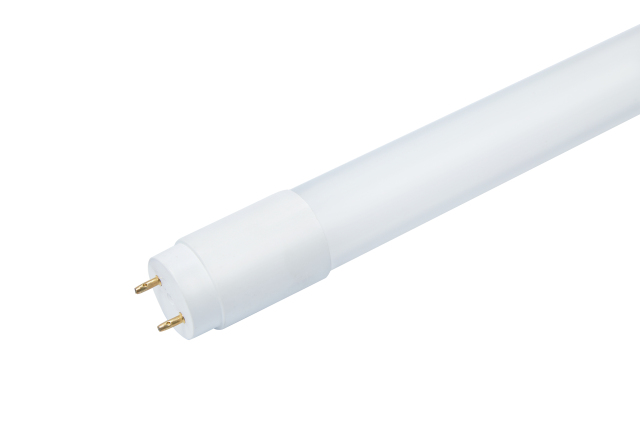

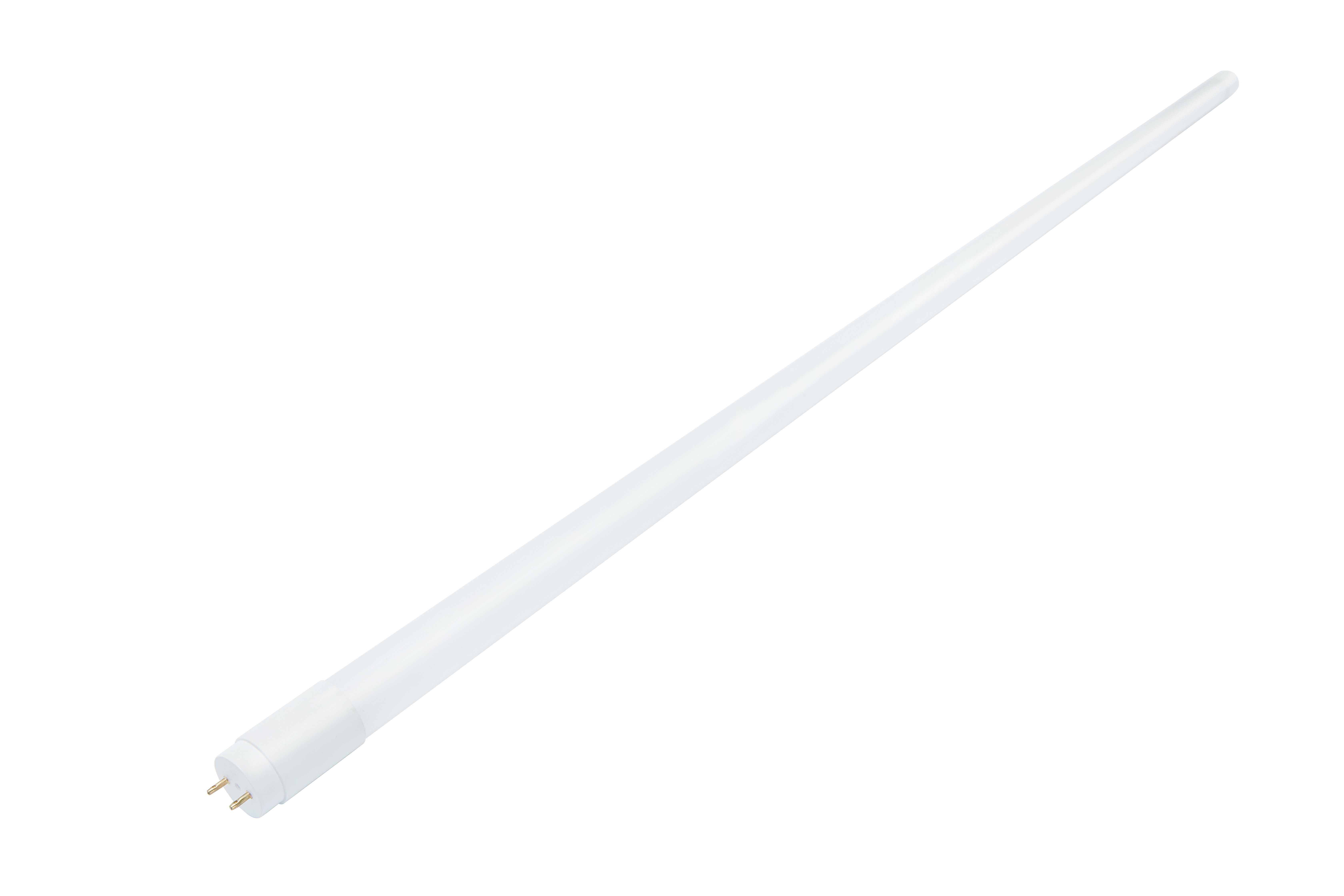

Henyentek Type B T8 is a ballast bypass tube as special
replacement for traditional fluorescent T8 lamps.
Built-in 0-10V dimming driver, dimming to 10%.
Simple installation & replacement
Easily turn the lights on or off with the paddle switch
and use the slide control to adjust the lights to the
desired level
Single ended ballast bypass
Safety when connecting AC power to 1-10v side
Optional housing: Glass + PET coating, glass painting
Reduce energy consumption up to 60%
Shatterproof design: Meets NSF requirements
