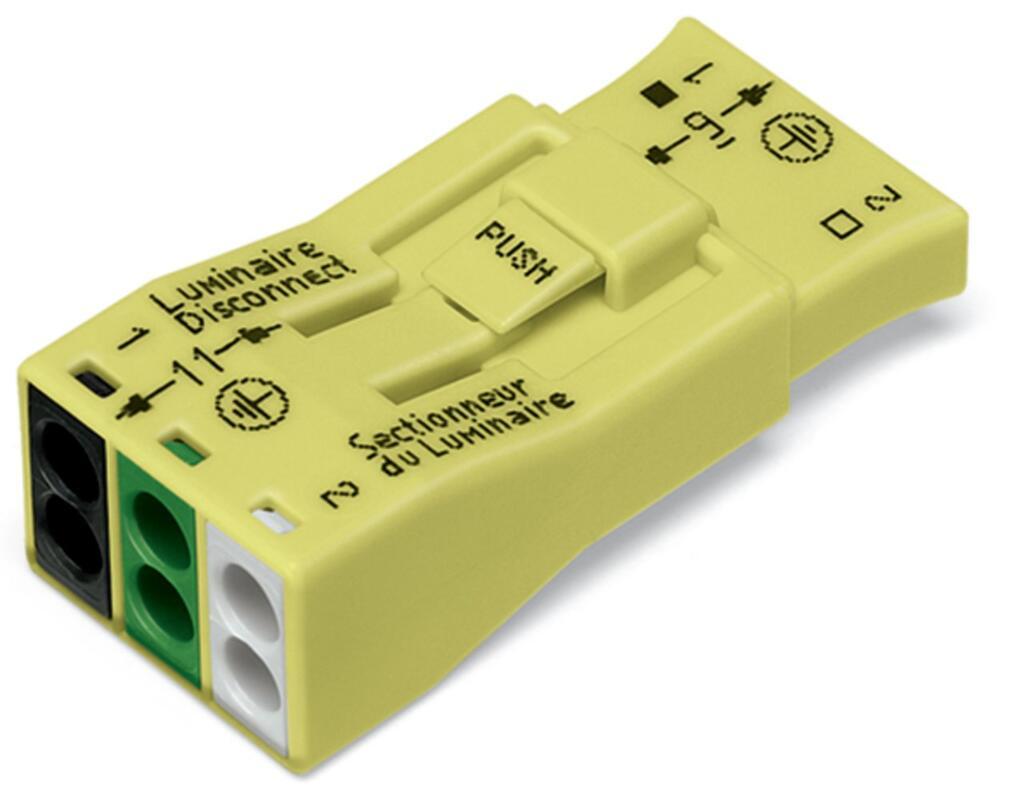

| NOTE | Touchproof connectors are required for ballast supply cables in the USA and Canada. When exchanging a ballast: 1. The touch-proof plug-in connection is disconnected´first. 2. The ballast is replaced. 3. Network connection is restored by plugging the connection. Reconnection streamlines ballast replacement while enhancing safety by safeguarding the installer from electric shock. The 873 Series is approved according to UL 2459 and CSA 22.2 for this type of application. |
|||
| ELECTRICAL | Ratings per | EN 60998 | ||
| Overvoltage category | III | III | II | |
| Pollution degree | 3 | 2 | 2 | |
| Nominal voltage | 400 V | |||
| Rated surge voltage | 4 kV | |||
| Rated current | 6 A | |||
| Ratings per IEC/EN 2 | Rated voltage (UL) 600V Rated current UL 20A |
|||
| CONNECTION DATA | Clamping units 9 Total number of potentials 3 |
|||
| CONNECTION 1 | Connection type 1 Plug Connection technology PUSH WIRE® Actuation type Push-in Connectable conductor materials Copper Solid conductor 16 … 12 AWG Stranded conductor 16 … 12 AWG Strip length 11 … 13 mm / 0.43 … 0.51 inches Number of poles 3 |
|||
| CONNECTION 2 | Connection type Socket Solid conductor 18 AWG Strip length 9 … 11 mm / 0.35 … 0.43 inches |
|||
| Physical data | Width 19 mm / 0.748 inches Height 13.2 mm / 0.52 inches Depth 42 mm / 1.654 inches |
|||
| Material data | Note (material data) Information on material specifications can be found here Color yellow Fire load 0.144MJ Weight 7g |
|||
| Commercial data | Product Group 8 (Misc. Chassis Mount Blocks) eCl@ss 10.0 27-44-03-14 eCl@ss 9.0 27-44-03-14 ETIM 9.0 EC002560 ETIM 8.0 EC000458 ECCN NO US CLASSIFICATION PU (SPU) 500 pcs Packaging type bag Country of origin CN GTIN 4050821857952 Customs tariff number 8536904000 |
|||
| Environmental Product Compliance | RoHS Compliance Status Compliant,No Exemption |
