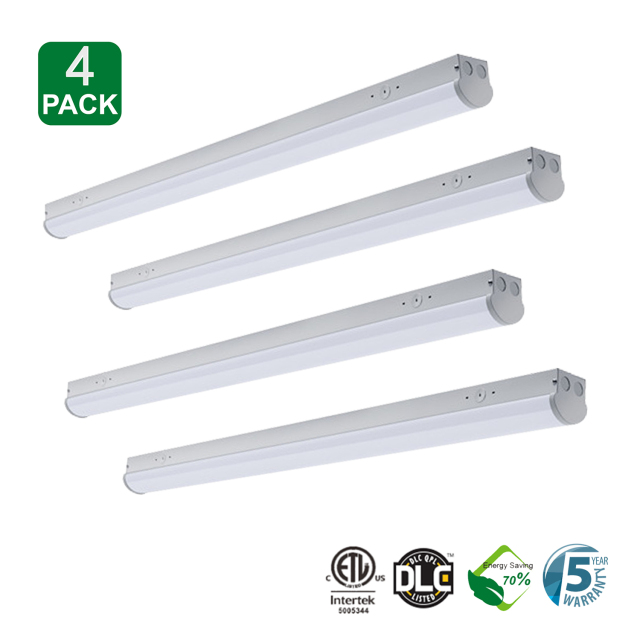

Product Overview

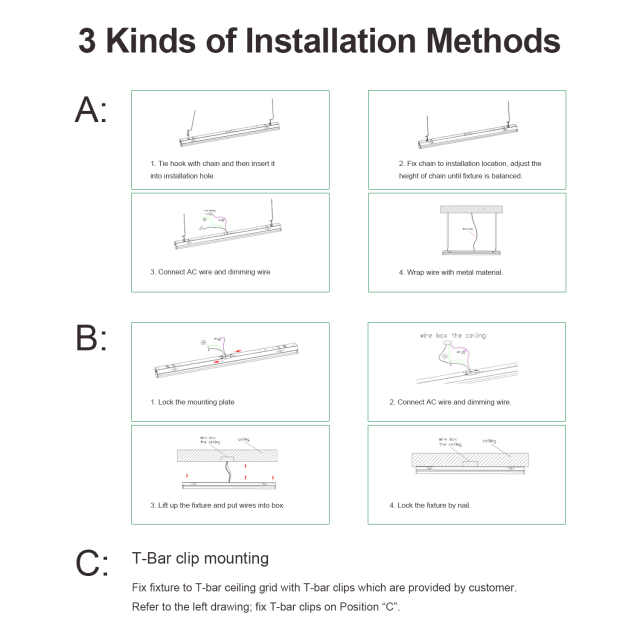

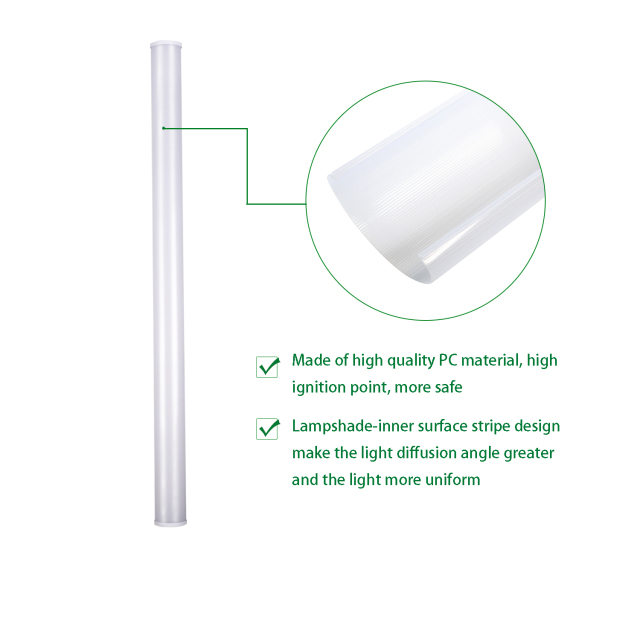

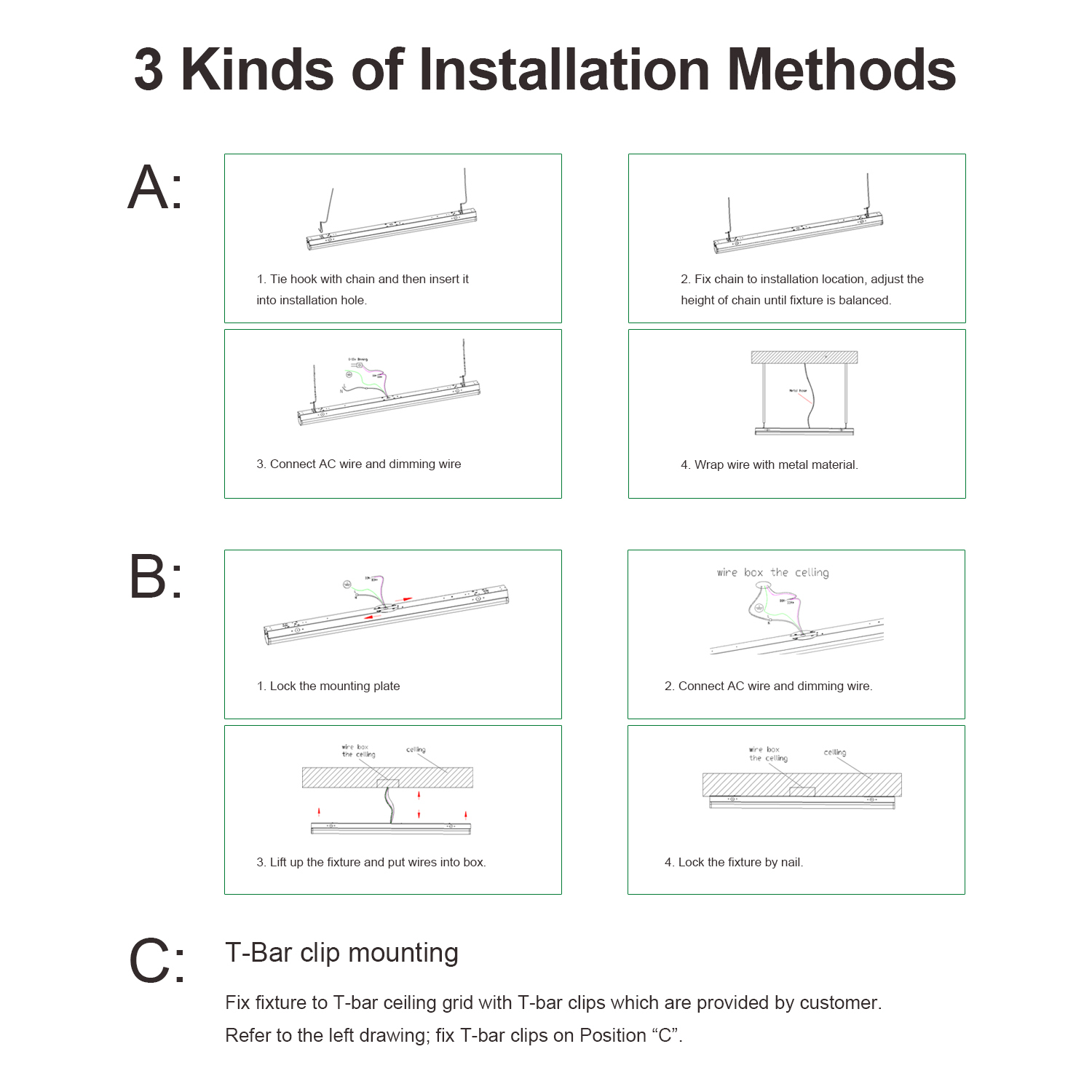

The TES LED strip light fixture is designed for both retrofitting existing fluorescent setups and new construction projects. It can be easily installed, either surface-mounted to ceilings and walls or suspended with a cable. The frosted acrylic diffuser provides wide light distribution and glare control. This energy-efficient, multi-purpose fixture is suitable for light industrial, commercial, retail, schools, healthcare, or residential use.
For additional energy savings, optional integral PIR motion sensor and emergency battery backup are available. This ensures a customized lighting experience for various environments.

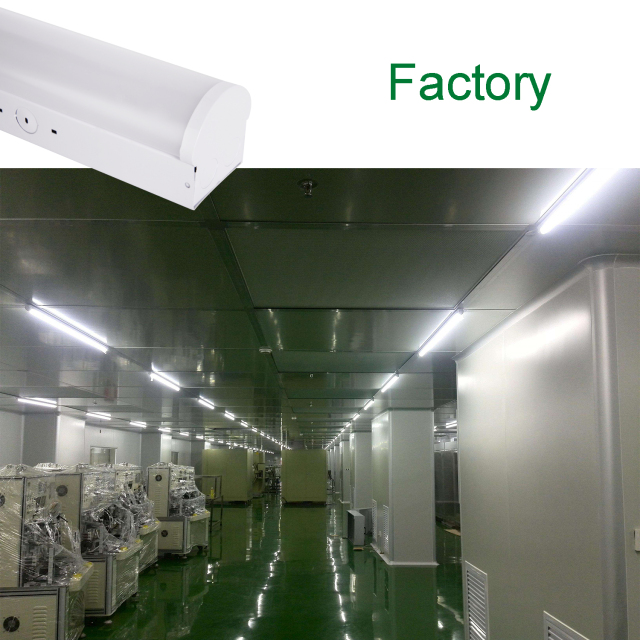

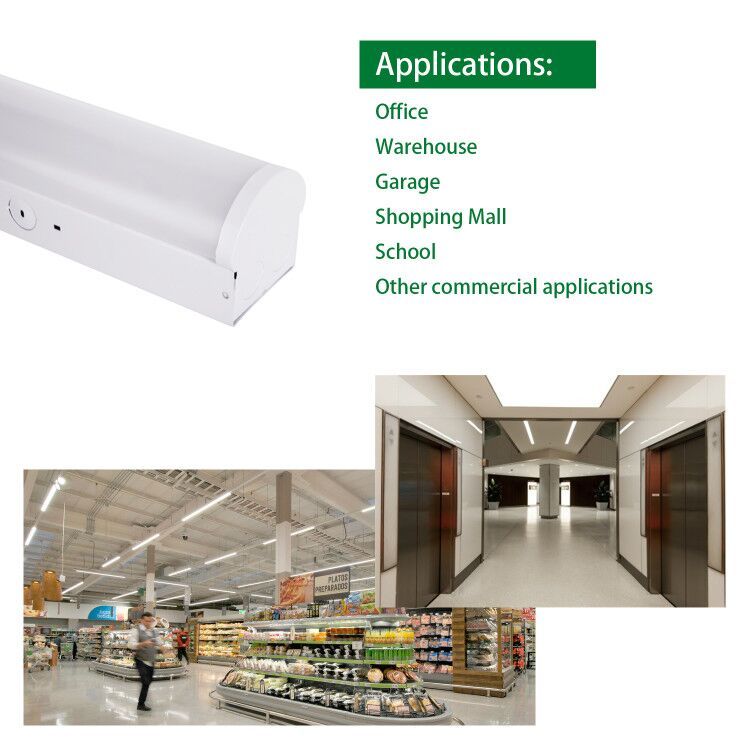

Applications
|
•Warehouses |
•Workshops |
|
•Factories |
•Residential Ceilings |
|
•Storage Facilities |
•Distribution Centers |
|
•Retails |
•Supermarkets |
|
•Warehouses |
•Workshops |
Certifications
Specifications
| Model NO. | TES-DM-ST4FT40WT- 3545K-[blank,EM,MS,ES] | Dimmable | 0-10V |
| Warranty | 5 Years | Equal to | 4-Lamp Fluorescent |
| Input Voltage | 120-277V | CRI | >80 |
| Input Wattage | 40W/32W/24W | Available CCT | 3500K/4000K/5000K |
| Delivered Lumens | 5,200LM/ 4,160LM/ 3,120LM | THD | <20% |

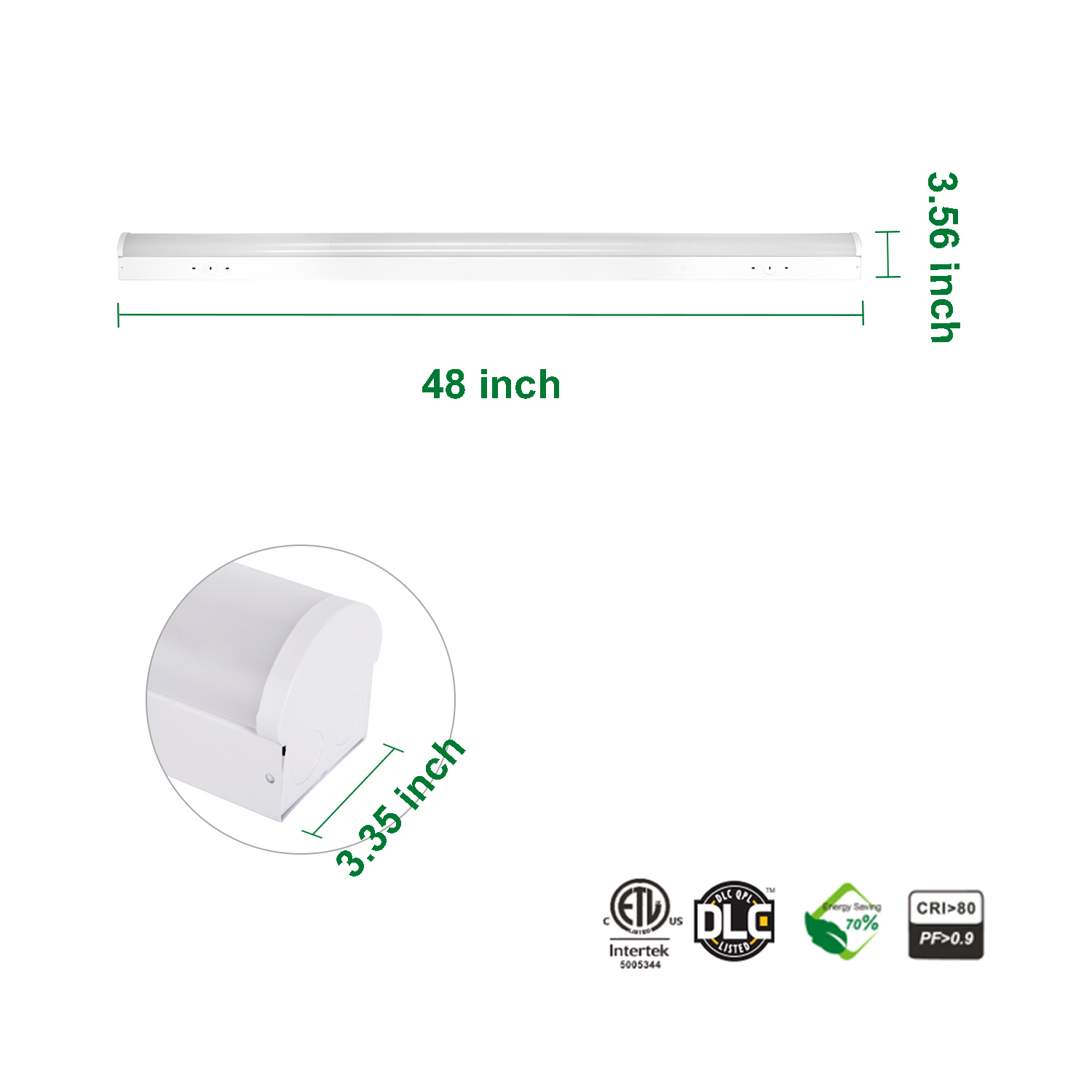

| Efficacy | 130 LM/W | Product Dimension | 48.0*2.9*3.27” |
| Rated Life | >50,000 Hrs | Carton Dimension | 50.79*7.48*7.87” |
| Power Fact | >0.9 | Package | 4pcs/ctn |
| Operating Temp | -40°F to 113°F | Product Weight/pc | 4.13 lb |
| Certifications | UL Damp Locations | Gross Weight/ctn | 18.08 lb |
